from __future__ import division, print_function
import numpy as np
import matplotlib
import matplotlib.colors as colors
import matplotlib.patches as patches
import matplotlib.mathtext as mathtext
import matplotlib.pyplot as plt
import matplotlib.artist as artist
import matplotlib.image as image


class ItemProperties(object):
    def __init__(self, fontsize=14, labelcolor='black', bgcolor='yellow',
                 alpha=1.0):
        self.fontsize = fontsize
        self.labelcolor = labelcolor
        self.bgcolor = bgcolor
        self.alpha = alpha

        self.labelcolor_rgb = colors.to_rgba(labelcolor)[:3]
        self.bgcolor_rgb = colors.to_rgba(bgcolor)[:3]


class MenuItem(artist.Artist):
    parser = mathtext.MathTextParser("Bitmap")
    padx = 5
    pady = 5

    def __init__(self, fig, labelstr, props=None, hoverprops=None,
                 on_select=None):
        artist.Artist.__init__(self)

        self.set_figure(fig)
        self.labelstr = labelstr

        if props is None:
            props = ItemProperties()

        if hoverprops is None:
            hoverprops = ItemProperties()

        self.props = props
        self.hoverprops = hoverprops

        self.on_select = on_select

        x, self.depth = self.parser.to_mask(
            labelstr, fontsize=props.fontsize, dpi=fig.dpi)

        if props.fontsize != hoverprops.fontsize:
            raise NotImplementedError(
                'support for different font sizes not implemented')

        self.labelwidth = x.shape[1]
        self.labelheight = x.shape[0]

        self.labelArray = np.zeros((x.shape[0], x.shape[1], 4))
        self.labelArray[:, :, -1] = x/255.

        self.label = image.FigureImage(fig, origin='upper')
        self.label.set_array(self.labelArray)

        # we'll update these later
        self.rect = patches.Rectangle((0, 0), 1, 1)

        self.set_hover_props(False)

        fig.canvas.mpl_connect('button_release_event', self.check_select)

    def check_select(self, event):
        over, junk = self.rect.contains(event)
        if not over:
            return

        if self.on_select is not None:
            self.on_select(self)

    def set_extent(self, x, y, w, h):
        print(x, y, w, h)
        self.rect.set_x(x)
        self.rect.set_y(y)
        self.rect.set_width(w)
        self.rect.set_height(h)

        self.label.ox = x + self.padx
        self.label.oy = y - self.depth + self.pady/2.

        self.rect._update_patch_transform()
        self.hover = False

    def draw(self, renderer):
        self.rect.draw(renderer)
        self.label.draw(renderer)

    def set_hover_props(self, b):
        if b:
            props = self.hoverprops
        else:
            props = self.props

        r, g, b = props.labelcolor_rgb
        self.labelArray[:, :, 0] = r
        self.labelArray[:, :, 1] = g
        self.labelArray[:, :, 2] = b
        self.label.set_array(self.labelArray)
        self.rect.set(facecolor=props.bgcolor, alpha=props.alpha)

    def set_hover(self, event):
        'check the hover status of event and return true if status is changed'
        b, junk = self.rect.contains(event)

        changed = (b != self.hover)

        if changed:
            self.set_hover_props(b)

        self.hover = b
        return changed


class Menu(object):
    def __init__(self, fig, menuitems):
        self.figure = fig
        fig.suppressComposite = True

        self.menuitems = menuitems
        self.numitems = len(menuitems)

        maxw = max([item.labelwidth for item in menuitems])
        maxh = max([item.labelheight for item in menuitems])

        totalh = self.numitems*maxh + (self.numitems + 1)*2*MenuItem.pady

        x0 = 100
        y0 = 400

        width = maxw + 2*MenuItem.padx
        height = maxh + MenuItem.pady

        for item in menuitems:
            left = x0
            bottom = y0 - maxh - MenuItem.pady

            item.set_extent(left, bottom, width, height)

            fig.artists.append(item)
            y0 -= maxh + MenuItem.pady

        fig.canvas.mpl_connect('motion_notify_event', self.on_move)

    def on_move(self, event):
        draw = False
        for item in self.menuitems:
            draw = item.set_hover(event)
            if draw:
                self.figure.canvas.draw()
                break

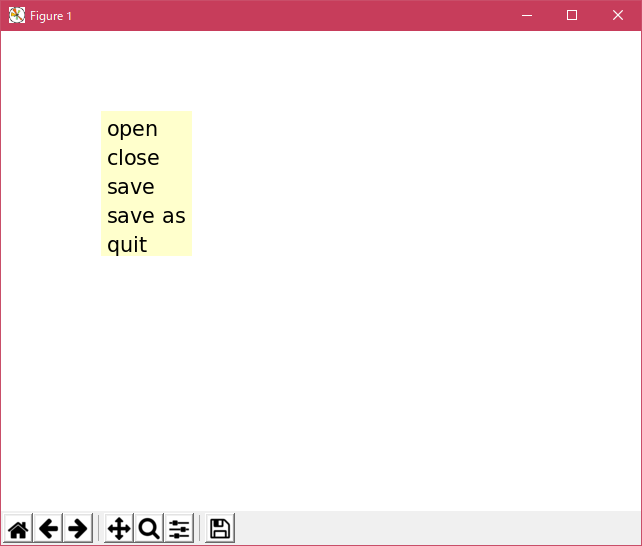

fig = plt.figure()
fig.subplots_adjust(left=0.3)
props = ItemProperties(labelcolor='black', bgcolor='yellow',
                       fontsize=15, alpha=0.2)
hoverprops = ItemProperties(labelcolor='white', bgcolor='blue',
                            fontsize=15, alpha=0.2)

menuitems = []
for label in ('open', 'close', 'save', 'save as', 'quit'):
    def on_select(item):
        print('you selected %s' % item.labelstr)
    item = MenuItem(fig, label, props=props, hoverprops=hoverprops,
                    on_select=on_select)
    menuitems.append(item)

menu = Menu(fig, menuitems)
plt.show()

　

Traceback (most recent call last):
  File "M:\______\menu.py", line 24, in
    class MenuItem(artist.Artist):
  File "M:\______\menu.py", line 25, in MenuItem
    parser = mathtext.MathTextParser("Bitmap")
             ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "C:\Users\______\AppData\Local\Programs\Python\Python311\Lib
    \site-packages\matplotlib\mathtext.py", line 206, in __init__
    self._output_type = _api.check_getitem(
                        ^^^^^^^^^^^^^^^^^^^
  File "C:\Users\______\AppData\Local\Programs\Python\Python311\Lib
    \site-packages\matplotlib\_api\__init__.py", line 192, in check_getitem
    raise ValueError(
ValueError: 'bitmap' is not a valid value for output;
     supported values are 'path', 'agg', 'macosx'

Traceback (most recent call last):
  File "E:\______\menu.py", line 24, in
    class MenuItem(artist.Artist):
  File "E:\______\menu.py", line 25, in MenuItem
    parser = mathtext.MathTextParser("Bitmap")
             ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "C:\Program Files\Python312\Lib\site-packages\matplotlib\mathtext.py",
    line 58, in __init__
    self._output_type = _api.check_getitem(
                        ^^^^^^^^^^^^^^^^^^^
  File "C:\Program Files\Python312\Lib\site-packages\matplotlib\_api\__init__.py",
    line 183, in check_getitem
    raise ValueError(
ValueError: 'bitmap' is not a valid value for output;
    supported values are 'path', 'agg', 'macosx'

"""
====

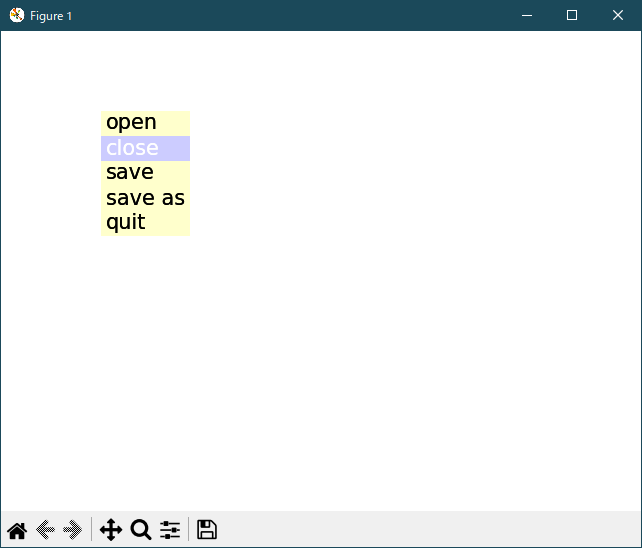

Menu
====

"""

import matplotlib.pyplot as plt

import matplotlib.artist as artist
import matplotlib.patches as patches
from matplotlib.transforms import IdentityTransform


class ItemProperties:
    def __init__(self, fontsize=14, labelcolor='black', bgcolor='yellow',
                 alpha=1.0):
        self.fontsize = fontsize
        self.labelcolor = labelcolor
        self.bgcolor = bgcolor
        self.alpha = alpha


class MenuItem(artist.Artist):
    padx = 5
    pady = 5

    def __init__(self, fig, labelstr, props=None, hoverprops=None,
                 on_select=None):
        super().__init__()

        self.set_figure(fig)
        self.labelstr = labelstr

        self.props = props if props is not None else ItemProperties()
        self.hoverprops = (
            hoverprops if hoverprops is not None else ItemProperties())
        if self.props.fontsize != self.hoverprops.fontsize:
            raise NotImplementedError(
                'support for different font sizes not implemented')

        self.on_select = on_select

        # Setting the transform to IdentityTransform() lets us specify
        # coordinates directly in pixels.
        self.label = fig.text(0, 0, labelstr, transform=IdentityTransform(),
                              size=props.fontsize)
        self.text_bbox = self.label.get_window_extent(
            fig.canvas.get_renderer())

        self.rect = patches.Rectangle((0, 0), 1, 1)  # Will be updated later.

        self.set_hover_props(False)

        fig.canvas.mpl_connect('button_release_event', self.check_select)

    def check_select(self, event):
        over, _ = self.rect.contains(event)
        if not over:
            return
        if self.on_select is not None:
            self.on_select(self)

    def set_extent(self, x, y, w, h, depth):
        self.rect.set(x=x, y=y, width=w, height=h)
        self.label.set(position=(x + self.padx, y + depth + self.pady/2))
        self.hover = False

    def draw(self, renderer):
        self.rect.draw(renderer)
        self.label.draw(renderer)

    def set_hover_props(self, b):
        props = self.hoverprops if b else self.props
        self.label.set(color=props.labelcolor)
        self.rect.set(facecolor=props.bgcolor, alpha=props.alpha)

    def set_hover(self, event):
        """
        Update the hover status of event and return whether it was changed.
        """
        b, _ = self.rect.contains(event)
        changed = (b != self.hover)
        if changed:
            self.set_hover_props(b)
        self.hover = b
        return changed


class Menu:
    def __init__(self, fig, menuitems):
        self.figure = fig

        self.menuitems = menuitems

        maxw = max(item.text_bbox.width for item in menuitems)
        maxh = max(item.text_bbox.height for item in menuitems)
        depth = max(-item.text_bbox.y0 for item in menuitems)

        x0 = 100
        y0 = 400

        width = maxw + 2*MenuItem.padx
        height = maxh + MenuItem.pady

        for item in menuitems:
            left = x0
            bottom = y0 - maxh - MenuItem.pady

            item.set_extent(left, bottom, width, height, depth)

            fig.artists.append(item)
            y0 -= maxh + MenuItem.pady

        fig.canvas.mpl_connect('motion_notify_event', self.on_move)

    def on_move(self, event):
        if any(item.set_hover(event) for item in self.menuitems):
            self.figure.canvas.draw()


fig = plt.figure()
fig.subplots_adjust(left=0.3)
props = ItemProperties(labelcolor='black', bgcolor='yellow',
                       fontsize=15, alpha=0.2)
hoverprops = ItemProperties(labelcolor='white', bgcolor='blue',
                            fontsize=15, alpha=0.2)

menuitems = []
for label in ('open', 'close', 'save', 'save as', 'quit'):
    def on_select(item):
        print('you selected %s' % item.labelstr)
    item = MenuItem(fig, label, props=props, hoverprops=hoverprops,
                    on_select=on_select)
    menuitems.append(item)

menu = Menu(fig, menuitems)
plt.show()

　

• 2023/12/13 Ver=1.04 Python 3.12.0 (matplotlib 3.8.1)で確認
• 2023/12/13 Ver=1.04 Python 3.11.6 (matplotlib 3.7.1)で確認
• 2023/04/06 Ver=1.03 Python 3.11.2 で確認
• 2020/11/03 Ver=1.01 Python 3.7.8 で確認
• 2018/12/08 Ver=1.01 初版リリース
