artist_tests.py

　Matplotlibプリミティブアーティストの各タイプのテストユニットのサポート。

　軸は単位変換を処理し、アーティストは軸の親を指すポインタを保持します。ユニットのデータで使用する場合は、軸インスタンスでアーティストを初期化する必要があります。そうしないと、単位をスカラーに変換する方法がわかりません。

"""
============
Artist tests
============

Test unit support with each of the Matplotlib primitive artist types.

The axis handles unit conversions and the artists keep a pointer to their axis
parent. You must initialize the artists with the axis instance if you want to
use them with unit data, or else they will not know how to convert the units
to scalars.
"""
import random
import matplotlib.lines as lines
import matplotlib.patches as patches
import matplotlib.text as text
import matplotlib.collections as collections

from basic_units import cm, inch
import numpy as np
import matplotlib.pyplot as plt

fig, ax = plt.subplots()
ax.xaxis.set_units(cm)
ax.yaxis.set_units(cm)

if 0:
    # test a line collection
    # Not supported at present.
    verts = []
    for i in range(10):
        # a random line segment in inches
        verts.append(zip(*inch*10*np.random.rand(2, random.randint(2, 15))))
    lc = collections.LineCollection(verts, axes=ax)
    ax.add_collection(lc)

# test a plain-ol-line
line = lines.Line2D([0*cm, 1.5*cm], [0*cm, 2.5*cm],
                    lw=2, color='black', axes=ax)
ax.add_line(line)

if 0:
    # test a patch
    # Not supported at present.
    rect = patches.Rectangle((1*cm, 1*cm), width=5*cm, height=2*cm,
                             alpha=0.2, axes=ax)
    ax.add_patch(rect)


t = text.Text(3*cm, 2.5*cm, 'text label', ha='left', va='bottom', axes=ax)
ax.add_artist(t)

ax.set_xlim(-1*cm, 10*cm)
ax.set_ylim(-1*cm, 10*cm)
# ax.xaxis.set_units(inch)
ax.grid(True)
ax.set_title("Artists with units")
plt.show()

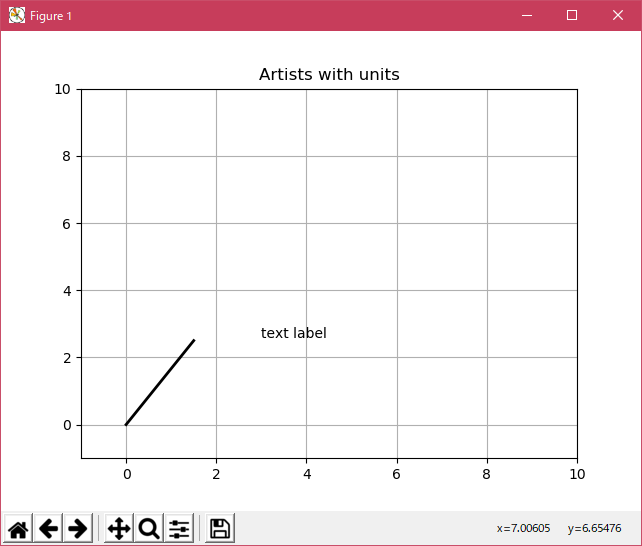

実行結果( artist_tests.png )

　このサンプルを実行するときに、basic_units_org.py が必要です。取り敢えず、実行時のカレント・ディレクトリに置けば動作します。

　

　Python 3.11.2 見直しました。上記のコードでは、下記のエラーが発生します。

artist_tests.txt

　matplotlib 内部のエラーのようです。matplotlib の改修（先祖帰りバグの改修）を待つしかない。

　Python 3.11.6 (matplotlib 3.7.1) では、下記のようなエラーがあり、実行できない。

Traceback (most recent call last):
  File "C:\Users\______\AppData\Local\Programs\Python\Python311\Lib
    \site-packages\matplotlib\axis.py", line 1732, in convert_units
    ret = self.converter.convert(x, self.units, self)
          ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "M:\______\basic_units.py", line 341, in convert
    if units.ConversionInterface.is_numlike(val):
       ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
AttributeError: type object 'ConversionInterface' has no attribute 'is_numlike'

The above exception was the direct cause of the following exception:

Traceback (most recent call last):
  File "M:\______\artist_tests.py", line 40, in
    ax.add_line(line)
  File "C:\Users\______\AppData\Local\Programs\Python\Python311\Lib
    \site-packages\matplotlib\axes\_base.py", line 2304, in add_line
    self._update_line_limits(line)
  File "C:\Users\______\AppData\Local\Programs\Python\Python311\Lib
    \site-packages\matplotlib\axes\_base.py", line 2327, in _update_line_limits
    path = line.get_path()
           ^^^^^^^^^^^^^^^
  File "C:\Users\______\AppData\Local\Programs\Python\Python311\Lib
    \site-packages\matplotlib\lines.py", line 1029, in get_path
    self.recache()
  File "C:\Users\______\AppData\Local\Programs\Python\Python311\Lib
    \site-packages\matplotlib\lines.py", line 656, in recache
    xconv = self.convert_xunits(self._xorig)
            ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "C:\Users\______\AppData\Local\Programs\Python\Python311\Lib
    \site-packages\matplotlib\artist.py", line 281, in convert_xunits
    return ax.xaxis.convert_units(x)
           ^^^^^^^^^^^^^^^^^^^^^^^^^
  File "C:\Users\______\AppData\Local\Programs\Python\Python311\Lib
    \site-packages\matplotlib\axis.py", line 1734, in convert_units
    raise munits.ConversionError('Failed to convert value(s) to axis '
matplotlib.units.ConversionError: Failed to convert value(s) to axis units:
  [TaggedValue(0, BasicUnit(cm)), TaggedValue(1.5, BasicUnit(cm))]

　Python 3.12.0 (matplotlib 3.8.1) では、下記のようなエラーがあり、実行できない。

Traceback (most recent call last):
  File "C:\Program Files\Python312\Lib\site-packages\matplotlib\axis.py",
    line 1769, in convert_units
    ret = self.converter.convert(x, self.units, self)
          ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "E:\______\basic_units.py", line 341, in convert
    if units.ConversionInterface.is_numlike(val):
       ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
AttributeError: type object 'ConversionInterface' has no attribute 'is_numlike'

The above exception was the direct cause of the following exception:

Traceback (most recent call last):
  File "E:\______\artist_tests.py", line 40, in
    ax.add_line(line)
  File "C:\Program Files\Python312\Lib\site-packages\matplotlib\axes\_base.py",
    line 2309, in add_line
    self._update_line_limits(line)
  File "C:\Program Files\Python312\Lib\site-packages\matplotlib\axes\_base.py",
    line 2332, in _update_line_limits
    path = line.get_path()
           ^^^^^^^^^^^^^^^
  File "C:\Program Files\Python312\Lib\site-packages\matplotlib\lines.py",
    line 1032, in get_path
    self.recache()
  File "C:\Program Files\Python312\Lib\site-packages\matplotlib\lines.py",
    line 668, in recache
    xconv = self.convert_xunits(self._xorig)
            ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "C:\Program Files\Python312\Lib\site-packages\matplotlib\artist.py",
    line 279, in convert_xunits
    return ax.xaxis.convert_units(x)
           ^^^^^^^^^^^^^^^^^^^^^^^^^
  File "C:\Program Files\Python312\Lib\site-packages\matplotlib\axis.py",
    line 1771, in convert_units
    raise munits.ConversionError('Failed to convert value(s) to axis '
matplotlib.units.ConversionError: Failed to convert value(s) to axis units:
  [TaggedValue(0, BasicUnit(cm)), TaggedValue(1.5, BasicUnit(cm))]

　Python 3.11.6 (matplotlib 3.7.1) 及び Python 3.12.0 (matplotlib 3.8.1) で、見直し中、新しいサンプル( units-artist-tests-py ) を見つけ、下記のコードで、正常に実行できました。

"""
============
Artist tests
============

Test unit support with each of the Matplotlib primitive artist types.

The axis handles unit conversions and the artists keep a pointer to their axis
parent. You must initialize the artists with the axis instance if you want to
use them with unit data, or else they will not know how to convert the units
to scalars.

.. only:: builder_html

   This example requires :download:`basic_units.py `
"""
import random

from basic_units import cm, inch

import matplotlib.pyplot as plt
import numpy as np

import matplotlib.collections as collections
import matplotlib.lines as lines
import matplotlib.patches as patches
import matplotlib.text as text

fig, ax = plt.subplots()
ax.xaxis.set_units(cm)
ax.yaxis.set_units(cm)

# Fixing random state for reproducibility
np.random.seed(19680801)

if 0:
    # test a line collection
    # Not supported at present.
    verts = []
    for i in range(10):
        # a random line segment in inches
        verts.append(zip(*inch*10*np.random.rand(2, random.randint(2, 15))))
    lc = collections.LineCollection(verts, axes=ax)
    ax.add_collection(lc)

# test a plain-ol-line
line = lines.Line2D([0*cm, 1.5*cm], [0*cm, 2.5*cm],
                    lw=2, color='black', axes=ax)
ax.add_line(line)

if 0:
    # test a patch
    # Not supported at present.
    rect = patches.Rectangle((1*cm, 1*cm), width=5*cm, height=2*cm,
                             alpha=0.2, axes=ax)
    ax.add_patch(rect)


t = text.Text(3*cm, 2.5*cm, 'text label', ha='left', va='bottom', axes=ax)
ax.add_artist(t)

ax.set_xlim(-1*cm, 10*cm)
ax.set_ylim(-1*cm, 10*cm)
# ax.xaxis.set_units(inch)
ax.grid(True)
ax.set_title("Artists with units")
plt.show()

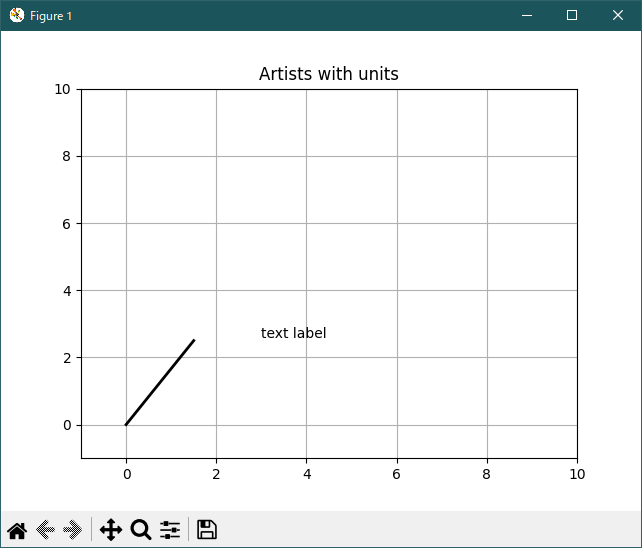

　Python 3.11.6 (matplotlib 3.7.1) 及び Python 3.12.0 (matplotlib 3.8.1) 共に、正常実行です。
　このサンプルを実行するときに、basic_units.py が必要です。取り敢えず、実行時のカレント・ディレクトリに置けば動作します。

　

　basic_units.py を新しいのに、入れ替えると、元の artist_tests.py でも、正常に実行できます。

　

参照ページ

units_Examples code: artist_tests.py
units-artist-tests-py

リリースノート

2023/12/12 Ver=1.04 Python 3.12.0 (matplotlib 3.8.1)で確認
2023/12/12 Ver=1.04 Python 3.11.6 (matplotlib 3.7.1)で確認
2023/04/06 Ver=1.03 Python 3.11.2 で確認
2020/11/03 Ver=1.01 Python 3.7.8 で確認
2018/12/08 Ver=1.01 初版リリース
