# -*- noplot -*-

from __future__ import print_function
"""
This provides examples of uses of interactive functions, such as ginput,
waitforbuttonpress and manual clabel placement.

This script must be run interactively using a backend that has a
graphical user interface (for example, using GTKAgg backend, but not
PS backend).

See also ginput_demo.py
"""
import time
import matplotlib
import numpy as np
import matplotlib.cm as cm
import matplotlib.mlab as mlab
import matplotlib.pyplot as plt


def tellme(s):
    print(s)
    plt.title(s, fontsize=16)
    plt.draw()

##################################################
# Define a triangle by clicking three points
##################################################
plt.clf()
plt.axis([-1., 1., -1., 1.])
plt.setp(plt.gca(), autoscale_on=False)

tellme('You will define a triangle, click to begin')

plt.waitforbuttonpress()

happy = False
while not happy:
    pts = []
    while len(pts) < 3:
        tellme('Select 3 corners with mouse')
        pts = np.asarray(plt.ginput(3, timeout=-1))
        if len(pts) < 3:
            tellme('Too few points, starting over')
            time.sleep(1)  # Wait a second

    ph = plt.fill(pts[:, 0], pts[:, 1], 'r', lw=2)

    tellme('Happy? Key click for yes, mouse click for no')

    happy = plt.waitforbuttonpress()

    # Get rid of fill
    if not happy:
        for p in ph:
            p.remove()

##################################################
# Now contour according to distance from triangle
# corners - just an example
##################################################


# Define a nice function of distance from individual pts
def f(x, y, pts):
    z = np.zeros_like(x)
    for p in pts:
        z = z + 1/(np.sqrt((x - p[0])**2 + (y - p[1])**2))
    return 1/z

X, Y = np.meshgrid(np.linspace(-1, 1, 51), np.linspace(-1, 1, 51))
Z = f(X, Y, pts)

CS = plt.contour(X, Y, Z, 20)

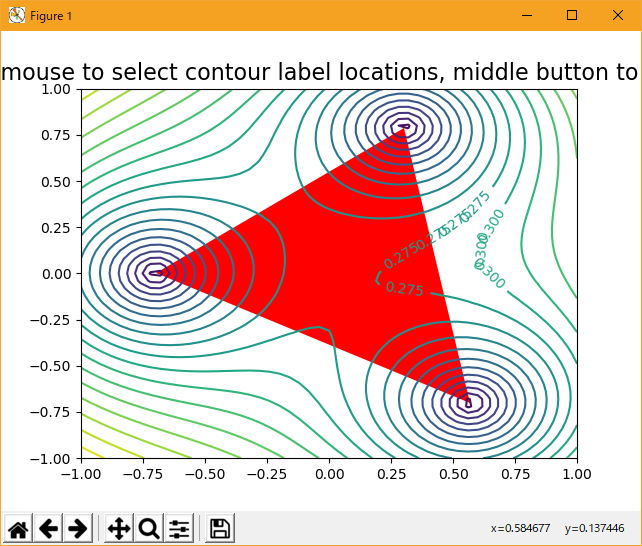

tellme('Use mouse to select contour label locations, middle button to finish')
CL = plt.clabel(CS, manual=True)

##################################################
# Now do a zoom
##################################################
tellme('Now do a nested zoom, click to begin')
plt.waitforbuttonpress()

happy = False
while not happy:
    tellme('Select two corners of zoom, middle mouse button to finish')
    pts = np.asarray(plt.ginput(2, timeout=-1))

    happy = len(pts) < 2
    if happy:
        break

    pts = np.sort(pts, axis=0)
    plt.axis(pts.T.ravel())

tellme('All Done!')
plt.show()

• 2023/04/02 Ver=1.03 Python 3.11.2 で確認
• 2020/10/31 Ver=1.01 Python 3.7.8 で確認
• 2018/12/01 Ver=1.01 初版リリース
