pylab_examples_Examples 51_dashpointlabel. |
H.Kamifuji . |
- dashpointlabel.py
この事例は、Windows10_1909 で Python 3.9.0 環境では、動作しません。( t = ax.text(.... がデグレートしたのか？ )
import matplotlib.pyplot as plt DATA = ((1, 3), (2, 4), (3, 1), (4, 2)) # dash_style = # direction, length, (text)rotation, dashrotation, push # (The parameters are varied to show their effects, # not for visual appeal). dash_style = ( (0, 20, -15, 30, 10), (1, 30, 0, 15, 10), (0, 40, 15, 15, 10), (1, 20, 30, 60, 10), ) fig, ax = plt.subplots() (x, y) = zip(*DATA) ax.plot(x, y, marker='o') for i in range(len(DATA)): (x, y) = DATA[i] (dd, dl, r, dr, dp) = dash_style[i] #print('dashlen call %d' % dl) t = ax.text(x, y, str((x, y)), withdash=True, dashdirection=dd, dashlength=dl, rotation=r, dashrotation=dr, dashpush=dp, ) ax.set_xlim((0.0, 5.0)) ax.set_ylim((0.0, 5.0)) plt.show()
- 実行結果( dashpointlabel.png )
Python 3.11.2 見直しました。上記のコードでは、下記のエラーが発生します。
Traceback (most recent call last):
File "_:\dashpointlabel.py", line 26, in <module>
t = ax.text(x, y, str((x, y)), withdash=True,
^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
File "C:\Users\_____\AppData\Local\Programs\Python\Python311\Lib\site-packages\matplotlib\axes\_axes.py", line 689, in text
t = mtext.Text(x, y, text=s, **effective_kwargs)
^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
File "C:\Users\_____\AppData\Local\Programs\Python\Python311\Lib\site-packages\matplotlib\_api\deprecation.py", line 454, in wrapper
return func(*args, **kwargs)
^^^^^^^^^^^^^^^^^^^^^
File "C:\Users\_____\AppData\Local\Programs\Python\Python311\Lib\site-packages\matplotlib\text.py", line 183, in __init__
self.update(kwargs)
File "C:\Users\_____\AppData\Local\Programs\Python\Python311\Lib\site-packages\matplotlib\text.py", line 231, in update
super().update(kwargs)
File "C:\Users\_____\AppData\Local\Programs\Python\Python311\Lib\site-packages\matplotlib\artist.py", line 1213, in update
return self._update_props(
^^^^^^^^^^^^^^^^^^^
File "C:\Users\_____\AppData\Local\Programs\Python\Python311\Lib\site-packages\matplotlib\artist.py", line 1197, in _update_props
raise AttributeError(
AttributeError: 'Text' object has no property 'withdash'
matplotlib 内部のエラーのようです。matplotlib の改修（先祖帰りバグの改修）を待つしかない。
Python 3.11.6 (matplotlib 3.7.1) では、下記のようなエラーがあり、実行できない。
Traceback (most recent call last): File "M:\______\dashpointlabel.py", line 26, in
Python 3.12.0 (matplotlib 3.8.1) では、下記のようなエラーがあり、実行できない。t = ax.text(x, y, str((x, y)), withdash=True, ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^ File "C:\Users\______\AppData\Local\Programs\Python\Python311\Lib \site-packages\matplotlib\axes\_axes.py", line 689, in text t = mtext.Text(x, y, text=s, **effective_kwargs) ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^ File "C:\Users\______\AppData\Local\Programs\Python\Python311\Lib \site-packages\matplotlib\_api\deprecation.py", line 454, in wrapper return func(*args, **kwargs) ^^^^^^^^^^^^^^^^^^^^^ File "C:\Users\______\AppData\Local\Programs\Python\Python311\Lib \site-packages\matplotlib\text.py", line 183, in __init__ self.update(kwargs) File "C:\Users\______\AppData\Local\Programs\Python\Python311\Lib \site-packages\matplotlib\text.py", line 231, in update super().update(kwargs) File "C:\Users\______\AppData\Local\Programs\Python\Python311\Lib \site-packages\matplotlib\artist.py", line 1213, in update return self._update_props( ^^^^^^^^^^^^^^^^^^^ File "C:\Users\______\AppData\Local\Programs\Python\Python311\Lib \site-packages\matplotlib\artist.py", line 1197, in _update_props raise AttributeError( AttributeError: 'Text' object has no property 'withdash'
Traceback (most recent call last): File "E:\______\dashpointlabel.py", line 26, in
Python 3.11.6 (matplotlib 3.7.1) 及び Python 3.12.0 (matplotlib 3.8.1) では、withdash 機能が削除されたようです。代替サンプルも見つからないので、dash が未完ながら、文字列の配置と回転を試みました。t = ax.text(x, y, str((x, y)), withdash=True, ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^ File "C:\Program Files\Python312\Lib\site-packages\matplotlib\axes\_axes.py", line 700, in text t = mtext.Text(x, y, text=s, **effective_kwargs) ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^ File "C:\Program Files\Python312\Lib\site-packages\matplotlib\text.py", line 155, in __init__ self.update(kwargs) File "C:\Program Files\Python312\Lib\site-packages\matplotlib\text.py", line 205, in update ret.extend(super().update(kwargs)) ^^^^^^^^^^^^^^^^^^^^^^ File "C:\Program Files\Python312\Lib\site-packages\matplotlib\artist.py", line 1209, in update return self._update_props( ^^^^^^^^^^^^^^^^^^^ File "C:\Program Files\Python312\Lib\site-packages\matplotlib\artist.py", line 1193, in _update_props raise AttributeError( AttributeError: 'Text' object has no property 'withdash'

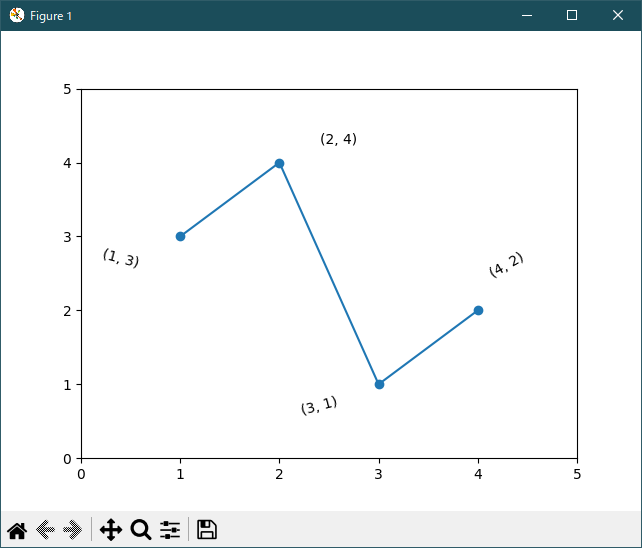

# Fixed by H.Kamifuji 2023/11/24 # import matplotlib.pyplot as plt DATA = ((1, 3), (2, 4), (3, 1), (4, 2)) # dash_style = # direction, length, (text)rotation, dashrotation, push # (The parameters are varied to show their effects, # not for visual appeal). dash_style = ( (0, 20, -15, -0.60, -0.30), (1, 30, 0, 0.60, 0.30), (0, 40, 15, -0.60, -0.30), (1, 20, 30, 0.30, 0.60), ) fig, ax = plt.subplots() (x, y) = zip(*DATA) ax.plot(x, y, marker='o') for i in range(len(DATA)): (x, y) = DATA[i] (dd, dl, r, dr, dp) = dash_style[i] #print('dashlen call %d' % dl) t = ax.text(x + dr, y + dp, str((x, y)), rotation=r, horizontalalignment='center', verticalalignment='center', ) ax.set_xlim((0.0, 5.0)) ax.set_ylim((0.0, 5.0)) plt.show()Python 3.11.6 (matplotlib 3.7.1) 及び Python 3.12.0 (matplotlib 3.8.1) 共に、正常実行です。
- 参照ページ
pylab_examples_Examples code: dashpointlabel.py
- リリースノート
- 2023/11/24 Ver=1.04 Python 3.12.0 (matplotlib 3.8.1)で確認
- 2023/11/24 Ver=1.04 Python 3.11.6 (matplotlib 3.7.1)で確認
- 2023/04/02 Ver=1.03 Python 3.11.2 で確認
- 2020/10/31 Ver=1.01 Python 3.7.8 で確認
- 2018/12/01 Ver=1.01 初版リリース
