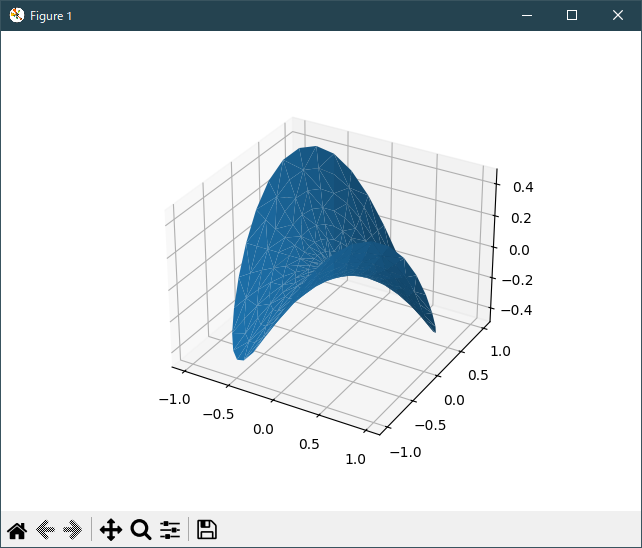

三角形メッシュで 3D サーフェスをプロットします。''' ====================== Triangular 3D surfaces ====================== Plot a 3D surface with a triangular mesh. ''' from mpl_toolkits.mplot3d import Axes3D import matplotlib.pyplot as plt import numpy as np n_radii = 8 n_angles = 36 # Make radii and angles spaces (radius r=0 omitted to eliminate duplication). radii = np.linspace(0.125, 1.0, n_radii) angles = np.linspace(0, 2*np.pi, n_angles, endpoint=False) # Repeat all angles for each radius. angles = np.repeat(angles[..., np.newaxis], n_radii, axis=1) # Convert polar (radii, angles) coords to cartesian (x, y) coords. # (0, 0) is manually added at this stage, so there will be no duplicate # points in the (x, y) plane. x = np.append(0, (radii*np.cos(angles)).flatten()) y = np.append(0, (radii*np.sin(angles)).flatten()) # Compute z to make the pringle surface. z = np.sin(-x*y) fig = plt.figure() ax = fig.gca(projection='3d') ax.plot_trisurf(x, y, z, linewidth=0.2, antialiased=True) plt.show() |
![]() Python 3.11.2 見直しました。上記のコードでは、下記のエラーが発生します。 Traceback (most recent call last): File "_:\trisurf3d_demo.py", line 34, in <module> ax = fig.gca(projection='3d') ^^^^^^^^^^^^^^^^^^^^^^^^ TypeError: FigureBase.gca() got an unexpected keyword argument 'projection' matplotlib 内部のエラーのようです。matplotlib の改修(先祖帰りバグの改修)を待つしかない。 Python 3.11.6 (matplotlib 3.7.1) では、下記のようなエラーがあり、実行できない。 Traceback (most recent call last): File "M:\______\trisurf3d_demo.py", line 34, inPython 3.12.0 (matplotlib 3.8.1) では、下記のようなエラーがあり、実行できない。 Traceback (most recent call last): File "E:\______\trisurf3d_demo.py", line 34, inPython 3.11.6 (matplotlib 3.7.1) 及び Python 3.12.0 (matplotlib 3.8.1) で、見直し中、新しいサンプル( mplot3d-trisurf3d-py ) を見つけ、下記のコードで、正常に実行できました。 """ ====================== Triangular 3D surfaces ====================== Plot a 3D surface with a triangular mesh. """ import matplotlib.pyplot as plt import numpy as np n_radii = 8 n_angles = 36 # Make radii and angles spaces (radius r=0 omitted to eliminate duplication). radii = np.linspace(0.125, 1.0, n_radii) angles = np.linspace(0, 2*np.pi, n_angles, endpoint=False)[..., np.newaxis] # Convert polar (radii, angles) coords to cartesian (x, y) coords. # (0, 0) is manually added at this stage, so there will be no duplicate # points in the (x, y) plane. x = np.append(0, (radii*np.cos(angles)).flatten()) y = np.append(0, (radii*np.sin(angles)).flatten()) # Compute z to make the pringle surface. z = np.sin(-x*y) ax = plt.figure().add_subplot(projection='3d') ax.plot_trisurf(x, y, z, linewidth=0.2, antialiased=True) plt.show()Python 3.11.6 (matplotlib 3.7.1) 及び Python 3.12.0 (matplotlib 3.8.1) 共に、正常実行です。 ![]() |
|
